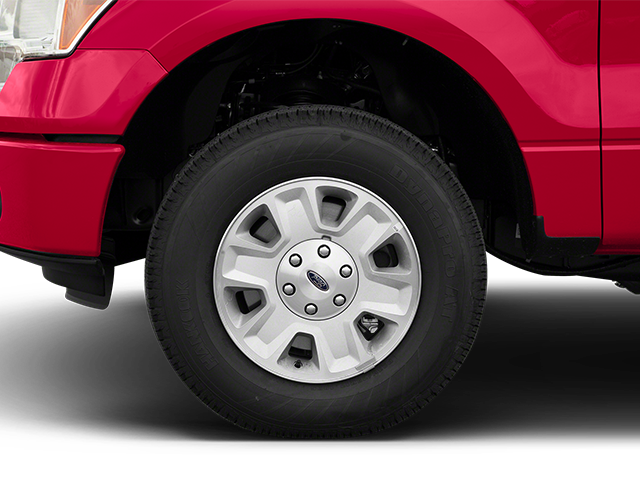

• P235/75R17 all-terrain BSW tires
• 17" machined aluminum wheels
• Full size spare tire
• Under frame winch-type spare tire carrier w/safety catch & lock
• Body-color front bumper fascia
• Body-color front/rear step bumper
• Black front/rear stone cuffs

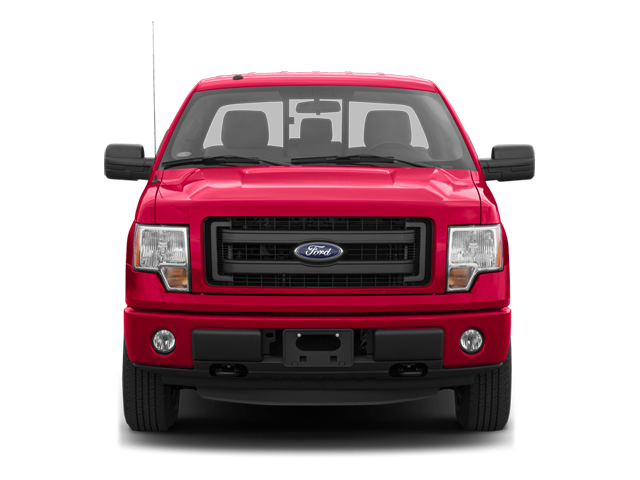

• Body-color grille surround w/black "two-bar style" insert
• Cargo lamp integrated w/high mount stop light
• Black pwr side mirrors
• Fixed rear window
• Variable interval wipers
• Black door & tailgate handles

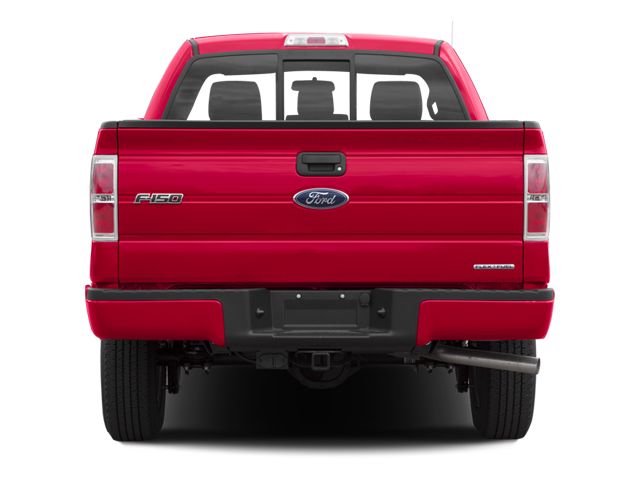

• Removable tailgate w/key lock & lift assist

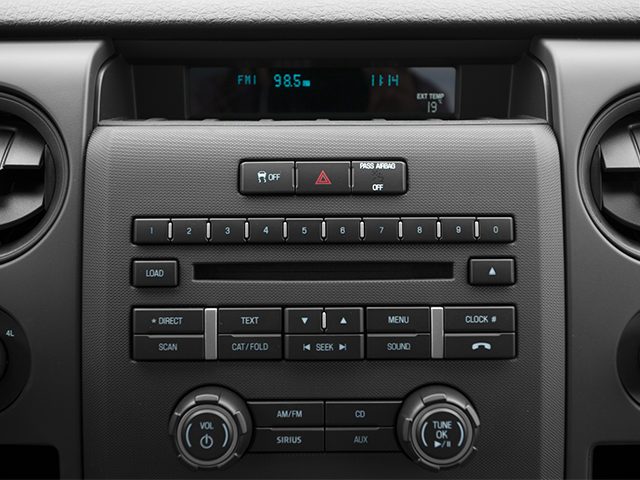

• AM/FM stereo w/CD player -inc: clock, aux audio input jack

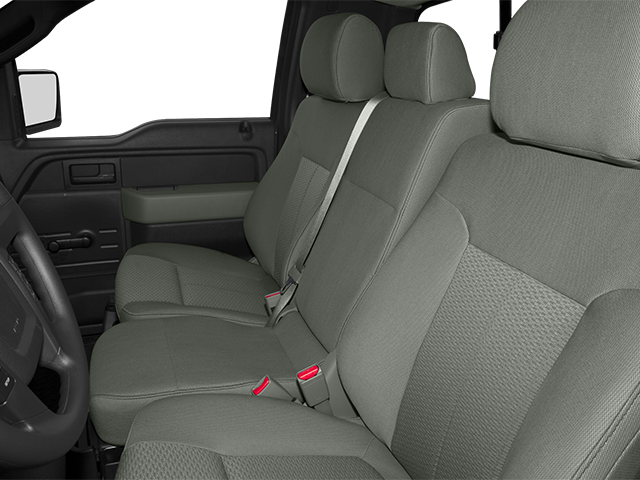

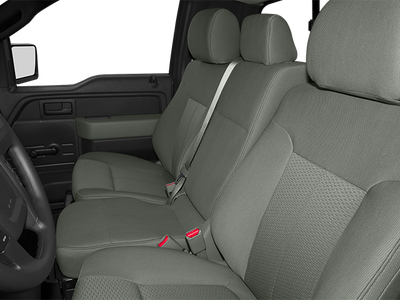

• Cloth 40/20/40 split bench front seat w/manual driver lumbar
• Black vinyl floor covering
• Driver & passenger door scuff plates

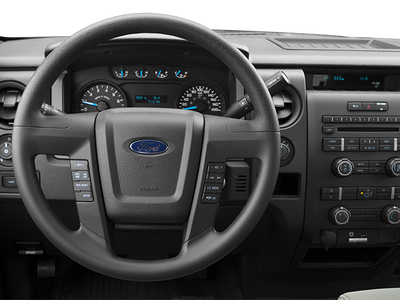

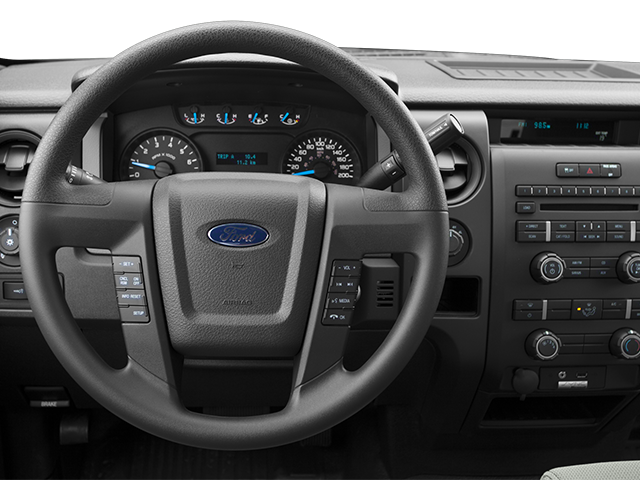

• Black urethane steering wheel
• Tilt steering column
• Display center -inc: warning messages & text functions
• Customer info display
• Outside temp gauge
• Pwr windows
• Delayed accessory pwr
• Pwr door locks w/autolock feature
• Perimeter alarm
• Remote keyless entry key
• Cruise control
• SecuriLock passive anti-theft system (PATS)
• Manual air conditioning
• Black ring w/black vanes air conditioning registers

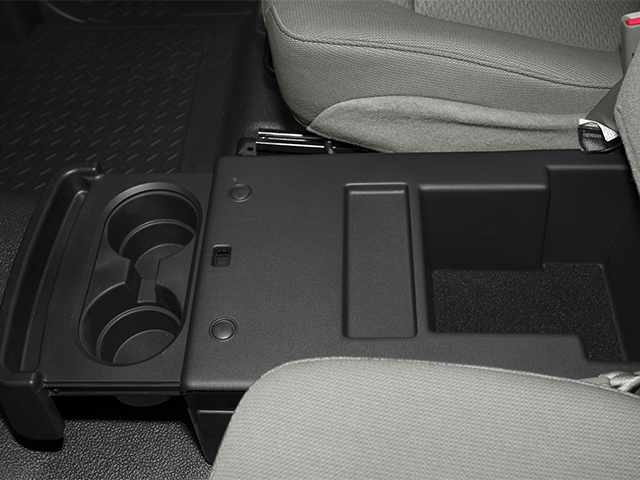

• Deployable cupholder under center portion of seat
• Front pwr point
• Sunvisors w/driver side strap, passenger mirror
• Front passenger side A-pillar grab handle
• Dome light
• Illuminated entry
• Fade-to-off interior lighting

• Anti-lock braking system (ABS)
• AdvanceTrac w/Roll Stability Control (RSC)
• Hill start assist
• Dual stage driver & passenger front airbags
• Dual stage driver & passenger seat-mounted side airbags
• Safety Canopy front side curtain airbags
• MyKey owner controls feature -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Auto lock safety belt feature for child seats
• Tire pressure monitoring system
• Dual note horn

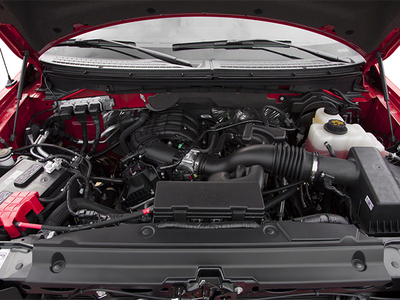

3.7L V6 FFV ENGINE

• (STD)

• 3.73 Axle Ratio
• Cloth 40/20/40 Front Seat
• Radio: AM/FM Stereo/Clock/Single-CD
• Front License Plate Bracket

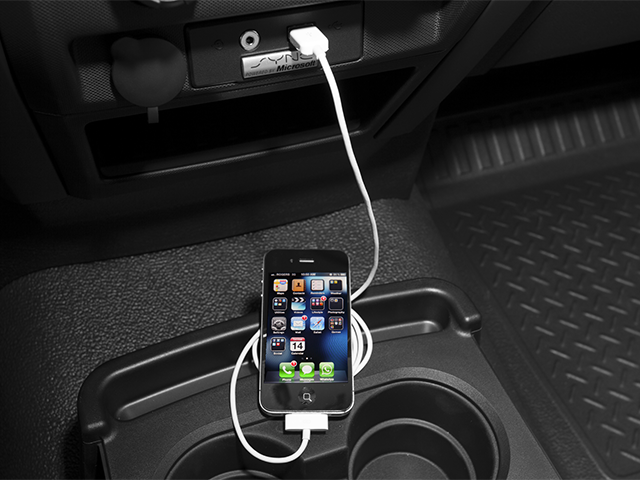

• SYNC
• 4 Speakers
• Front beverage holders
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Speed-sensing steering
• Rear step bumper
• Power steering
• Passenger vanity mirror
• Passenger door bin
• Overhead airbag
• Occupant sensing airbag
• Low tire pressure warning
• Front wheel independent suspension
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver door bin
• AM/FM radio
• ABS brakes
• Tachometer
• Electronic Stability Control
• Air Conditioning
• 4-Wheel Disc Brakes

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 15.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3450
• Gross Axle Wt Rating - Rear (lbs): 3500
• Curb Weight - Front (lbs): 2905
• Curb Weight - Rear (lbs): 2020
• Gross Vehicle Weight Rating Cap (lbs): 6650
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 855
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 5700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1425
• Suspension
• Suspension Type - Front: Double-Wishbone
• Suspension Type - Rear: Live Axle
• Spring Capacity - Front (lbs): 3450
• Spring Capacity - Rear (lbs): 3500
• Axle Type - Front: Long-Spindle
• Axle Type - Rear: Semi-Float Beam
• Axle Capacity - Front (lbs): 4050
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 36.068
• Shock Absorber Diameter - Rear (mm): 32.004
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.78 x 0.55
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.413
• Tires
• Front Tire Order Code: T7B
• Rear Tire Order Code: T7B
• Front Tire Size: P235/75R17
• Rear Tire Size: P235/75R17
• Spare Tire Size: P235/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 41.7
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Fully Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 125.9
• Length, Overall w/o rear bumper (in): 213.2
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 76.0
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 135.6
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.3
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -

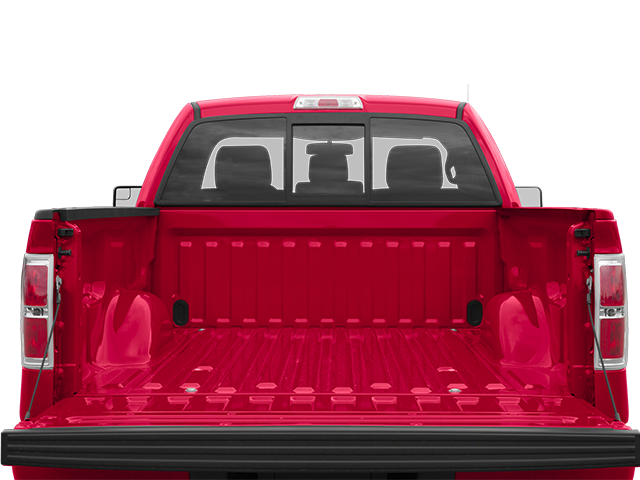

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 60.3
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 65.5
• Ext'd Cab Cargo Volume (ft³): 17.4
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 66.6
• Front Hip Room (in): 60.5
• Summary

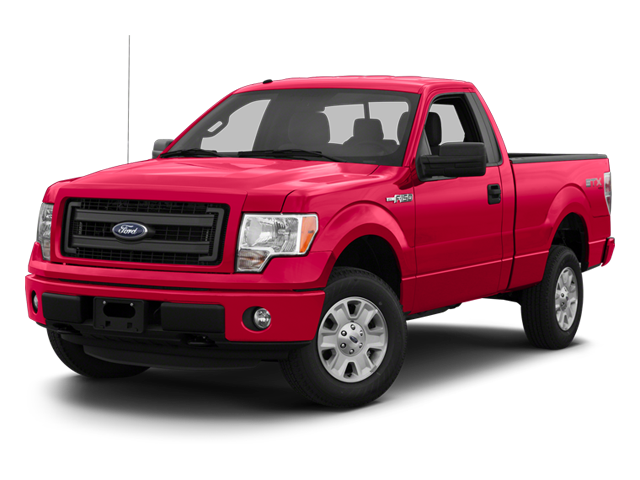

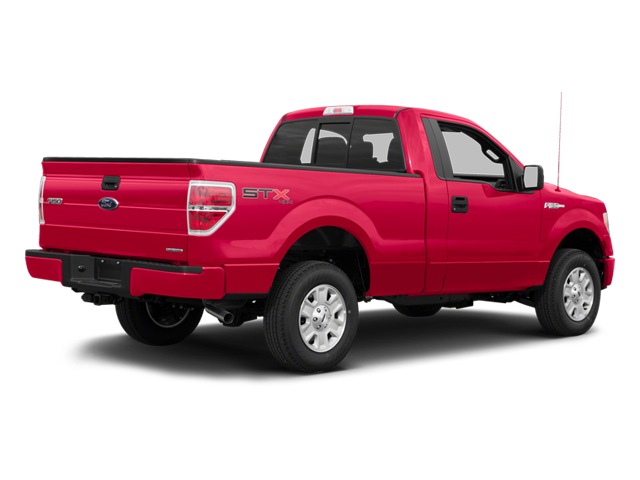

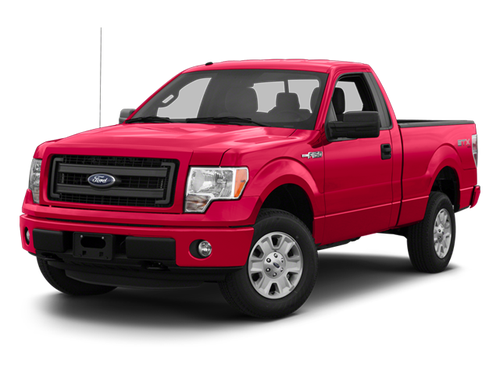

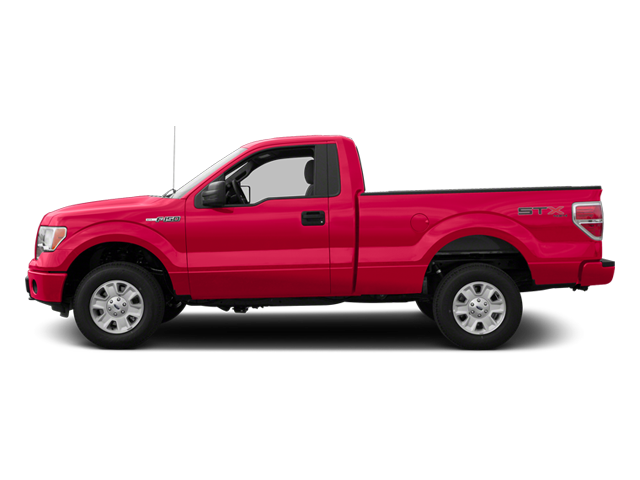

• Vehicle Name: Ford F-150
• Body Style: Regular Cab Pickup
• Emissions
• EPA Greenhouse Gas Score: 3 (2012)
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.2
